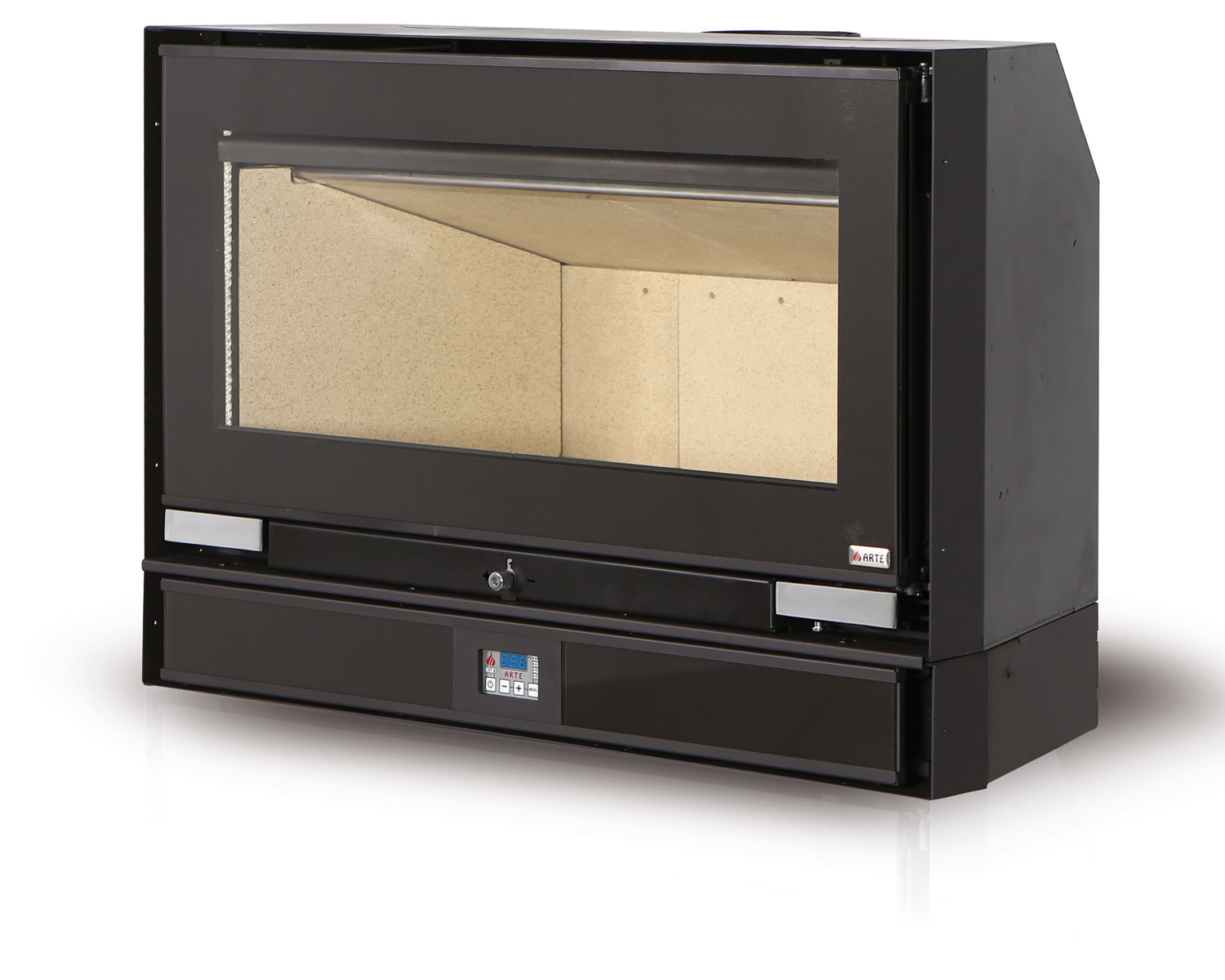

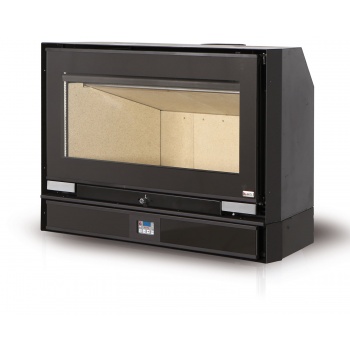

NEAT LINE 90 with ventilator system



Available
Description

Its innovative design works perfectly with the new architectural lines, giving a fantastic view of the flame and at the same time offering one of the highest certified thermal and ecological performances.

  • > Solid construction (monoblock), 3-6mm sheet metal
  • > Excellent door sealing with double latch and 800oC high strength and clarity ceramic glass
  • > Cold hand for combustion regulation and door opening-closing
  • > Possibility to supply external combustion air (back or bottom)
  • > Possibility of easy adjustment of the smoke pipe to the top or to the back
  • > Burner with secondary combustion and air curtain for clean glass, fully controllable
  • > Combustion area with vermiculite 1200kg/m3 below and 750kg/m3 on the sides and above
  • > Double flue gas cutter to maximize efficiency
  • > Low fuel consumption with minimal residues (approx. 1kg ash per 100kg wood)
  • > Possibility of choosing right or left opening of the door
  • > Multi-function electronic thermostat
  • > Faster distribution of warm air to other rooms as well
  • > Two motors with a total power of 200m3/h
  • > Detachable glass front for easy cleaning
  • > Cleanable heating air intake filters
  • > Cleanable heating air intake filters
Technical Characteristics
Total heat output 8.5 kW
Overall performance 81 %
Hourly fuel consumption 2.4 Kg/h
Performance range 3.4 - 10.5 kW min-max
Heated area 25 - 140 m2 min-max
CO emissions (with 13% O2 supply) 0.090 %
Device dimensions (WxDxH) 88.5/45/59 cm
Combustion space dimensions (WxDxH) 60/34/23 cm
Weight 136 Kg
